OSFP Cold Plate
Misalignment Tolerance:± 0.5 mm
Max Flow Rate: 0.9 LPM
Max Pressure: 150 PSI
Mating Cycles: 1500 cycles
Fin Thickness: Tmin = 0.1 mm
Fin Pitch: Pmin = 0.1 mm
Contact Us

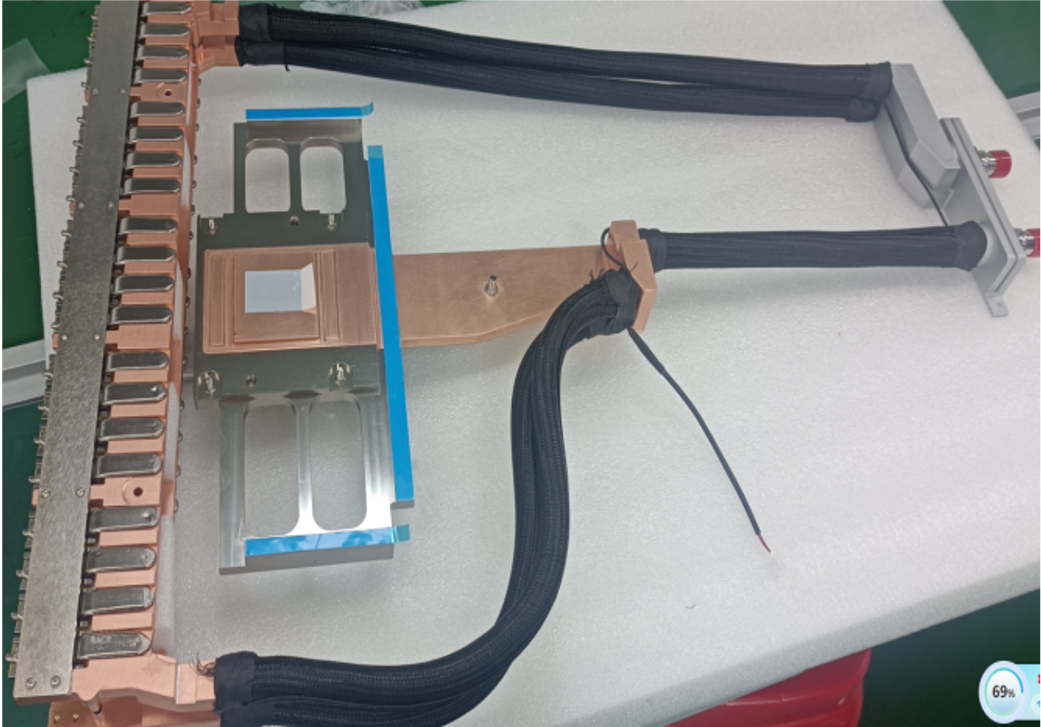

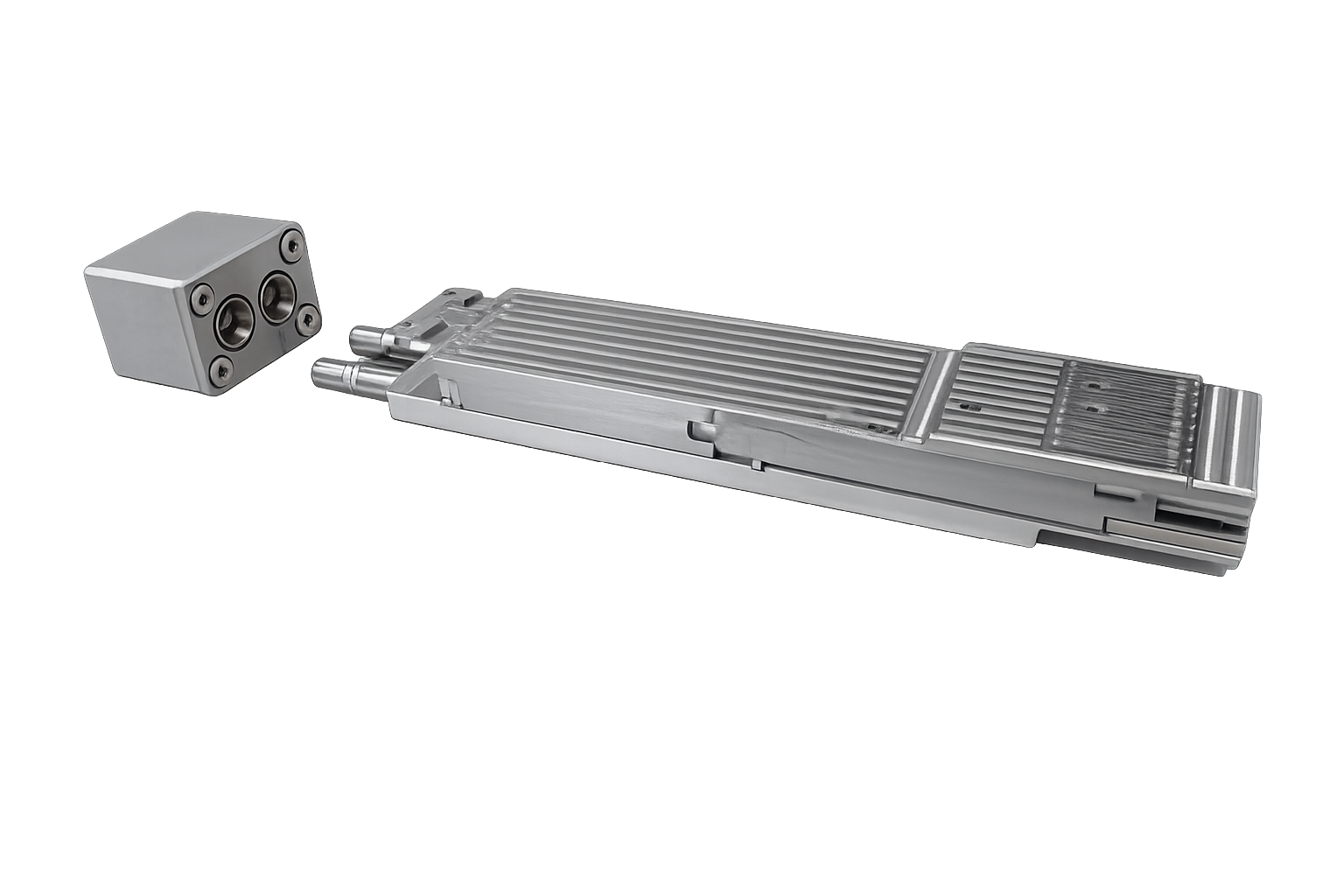

The OSFP cold plate is designed for high-density liquid cooling applications, delivering efficient heat transfer through a precision micro-fin structure with 0.1 mm fin thickness and 0.1 mm fin pitch. With a maximum flow rate of 0.9 LPM, pressure rating up to 150 PSI, ±0.5 mm misalignment tolerance, and 1,500 mating cycles, it provides reliable performance and easy integration for next-generation server and networking systems.
Misalignment Tolerance:± 0.5 mm
Max Flow Rate: 0.9 LPM
Max Pressure: 150 PSI
Mating Cycles: 1500 cycles
Fin Thickness: Tmin = 0.1 mm
Fin Pitch: Pmin = 0.1 mm
